Uputronics preamps are compatible with most USB SDR Dongles such as the RTL USB, Airspy, Fun Cube. You can power them from either bias tee (This item is 100% compatible with the Airspy bias-tee) or a simple USB-C cable (Not Supplied - but we sell a suitable USB Type A to C Cable).
Bias-tee voltage input is 5V.
This unit is filter and preamp designed to go between an antenna and a software defined radio receiver. Using a SAW bandpass filter and a low noise amplifier (LNA), it stops out of band intermodulation while providing additional gain for increased sensitivity. The LNA is before the SAW filter in this design to reduce the noise factor of the unit.

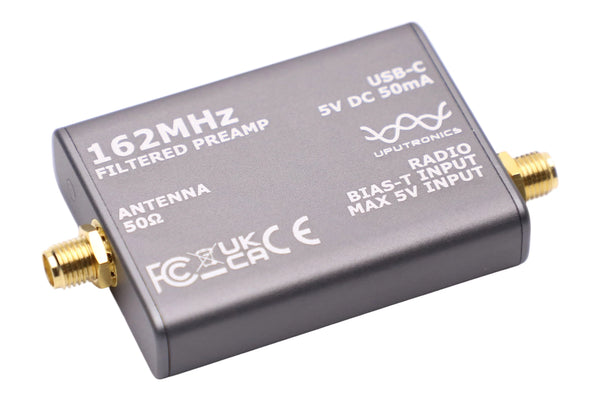

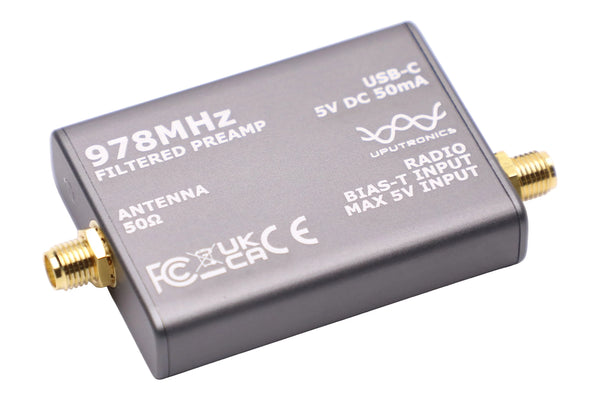

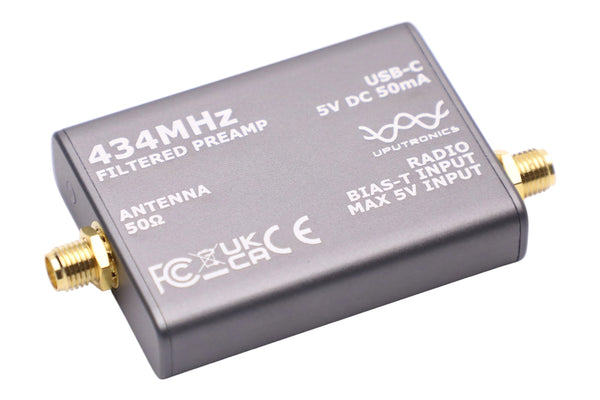

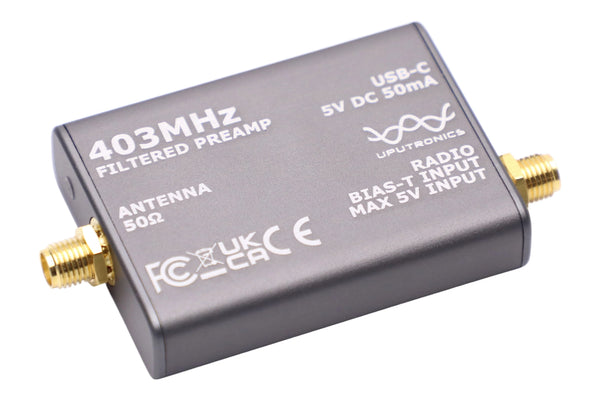

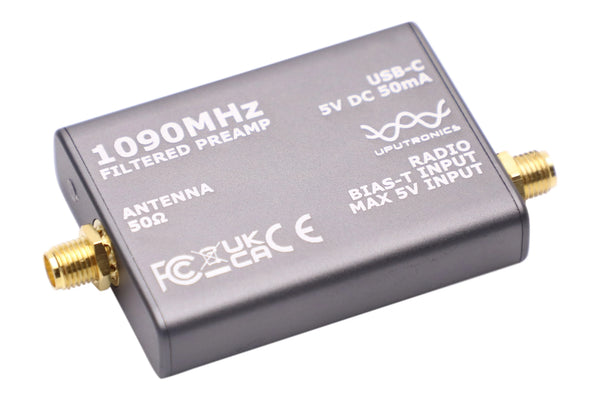

High quality SMA female connectors are fitted for antenna input and radio output. A power LED indicates unit is operating.

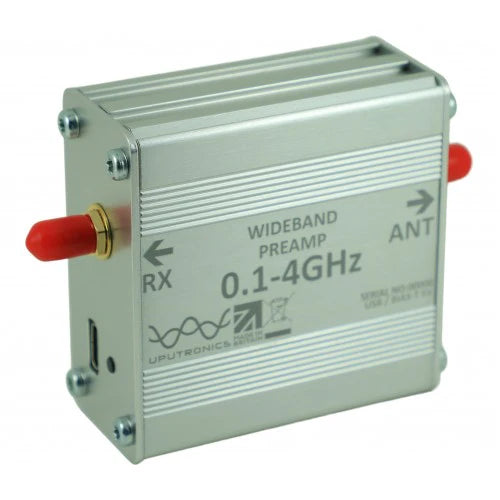

All units apart from the 137.5MHz & Wideband are now supplied in a modern smaller aluminum case.
Optional Mounting Brackets
We have designed some mounting brackets available on Thingiverse that you can print:
Uputronics Gen3 LNA Mount without Lugs
Uputronics Gen3 LNA Mount with Lugs
If you don't have access to a 3D printer you can purchase preprinted brackets here: LNA Mounting Bracket
Optional RF Adapters
We have have a selection of RF adapters available here.
Documentation:
Uputronics FPA Series Preamplifiers Datasheet contains CE/UKCA conformity declarations.
Uputronics FPA Series V3 Enclosure Dimensions
