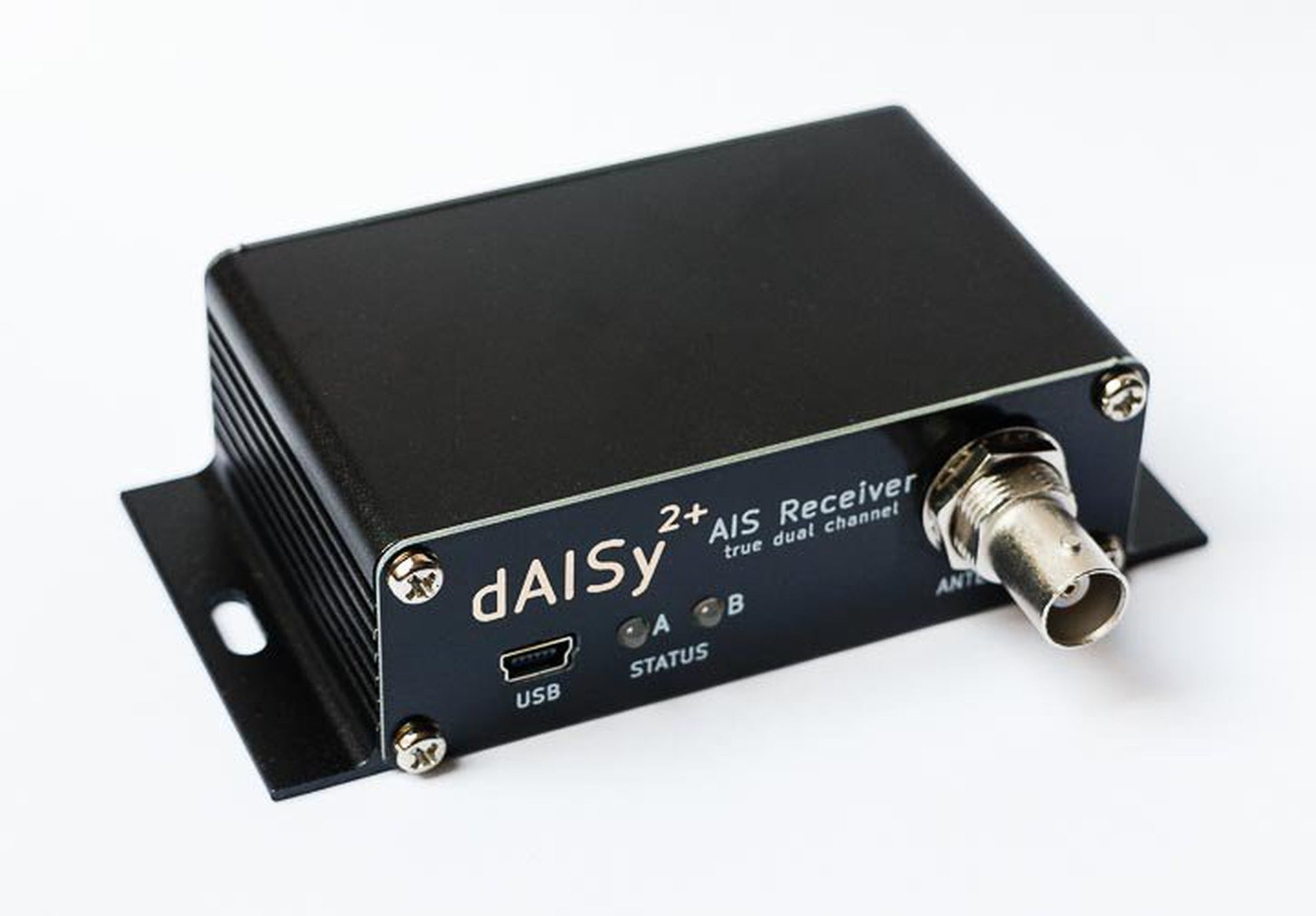

dAISy 2+ dual-channel AIS Receiver with NMEA 0183 output
dAISy 2+ dual-channel AIS Receiver with NMEA 0183 output
Couldn't load pickup availability
This AIS receiver is built for boaters. Compact, robust, and with all the interfaces you need. Thanks to its two-channel design, the dAISy 2+ receives about 40% more messages than the cheaper single-channel dAISy. This improves acquisition time and update rate of AIS targets, while range is comparable for both models.

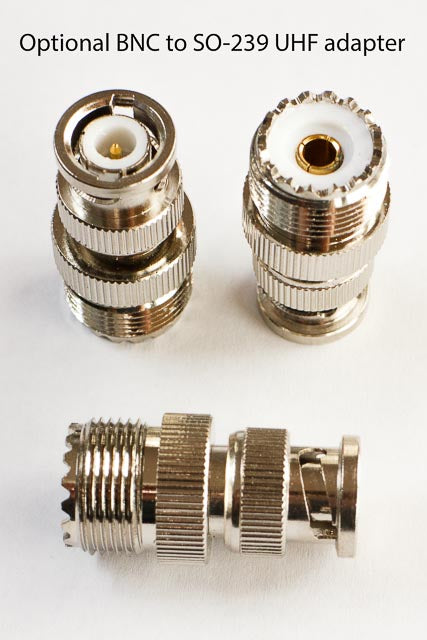

See also the accessories section for a matching antenna splitter, preamplifier, and RF adapters and cables.
Specification
- Dual channel receiver
- Receiving on channel A (161.975 MHz) and B (162.025 MHz) simultaneously
- 38400 baud serial output over USB in industry standard NMEA format (AIVDM)
- NMEA 0183 output at 4800, 9600 or 38400 baud for connection to chart plotters
- Auxiliary TTL serial output for connection to other devices (like this WiFi module)
- No drivers required for Windows 10, Windows 11, Mac OS X and Linux (driver available for older versions of Windows).
- Supported by qtVlm, Boat Beacon, OpenCPN and SailGrib WR on Android devices with USB OTG.

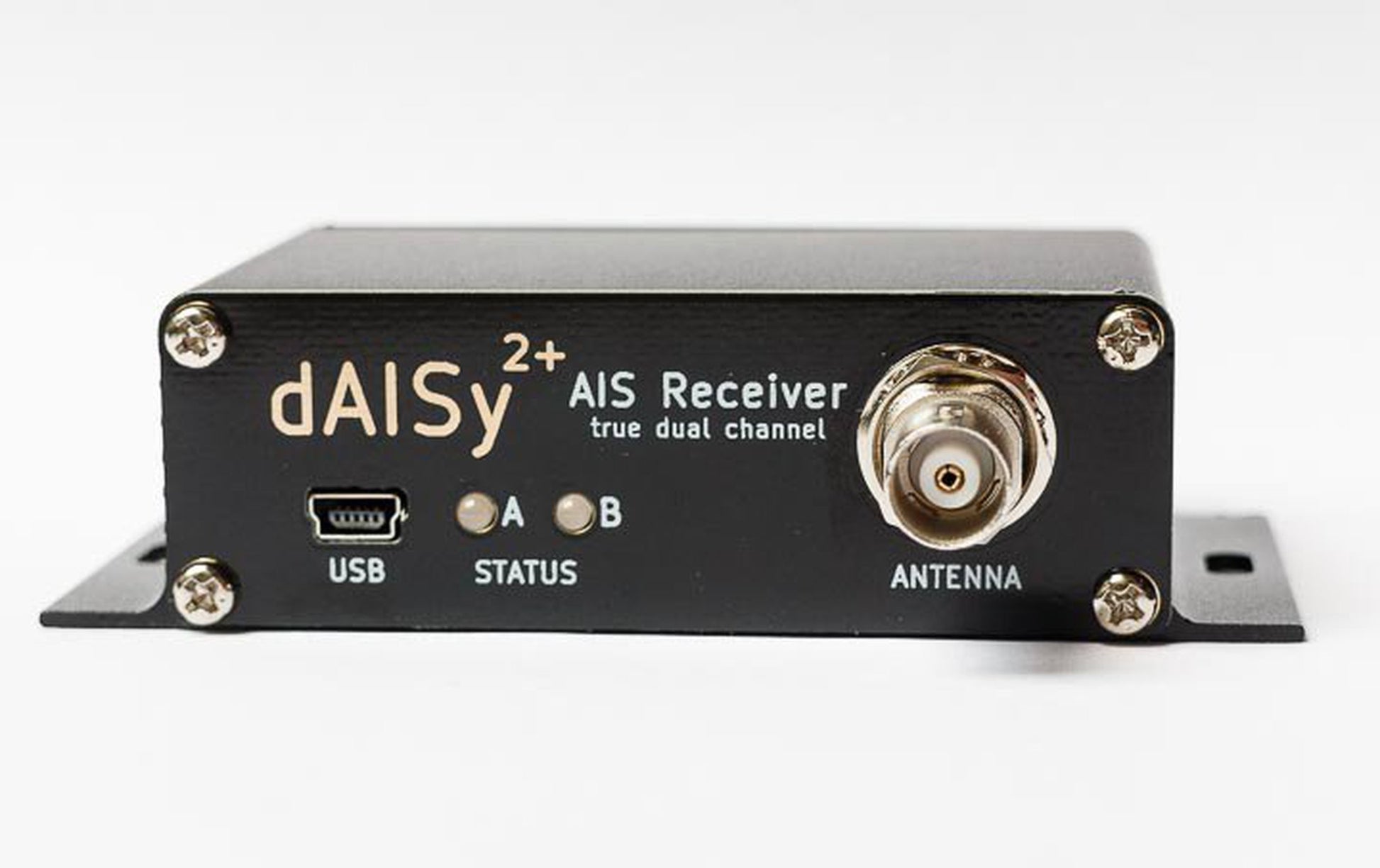

- BNC connector for 50 Ohm VHF antenna (antenna not included)

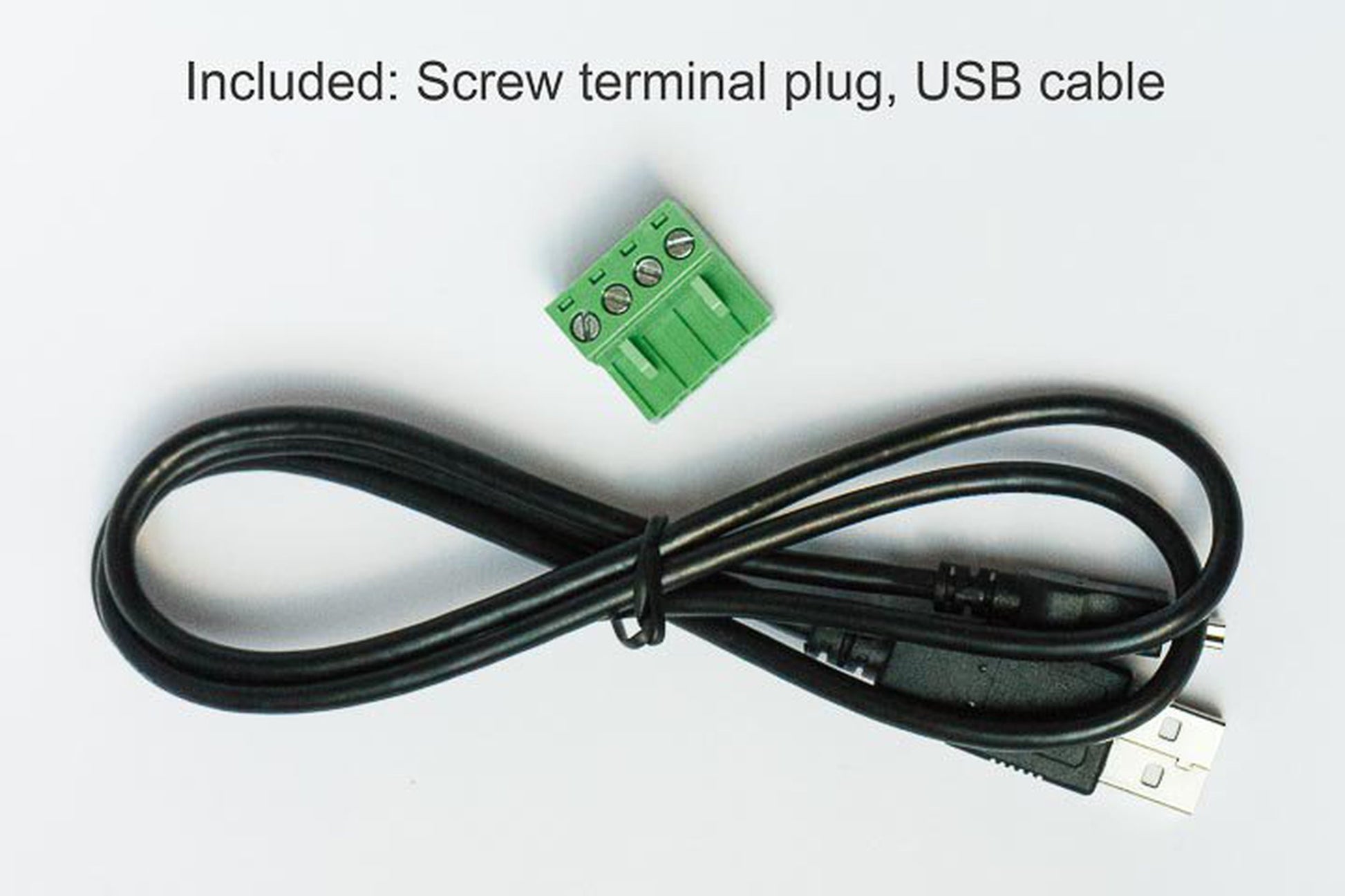

- Mini-USB connector for data and power (3ft USB cable included)
- 5mm pitch terminal block for NMEA (matching plug with screw terminals included)
- Can be powered over USB or from a 12-36V DC power source
- Low power consumption, less than 500mW in receive mode (<100mA at 5V, <40mA at 12V)
- Very robust aluminum enclosure with mounting holes, size: 105 x 80 x 28mm
- Made in the USA

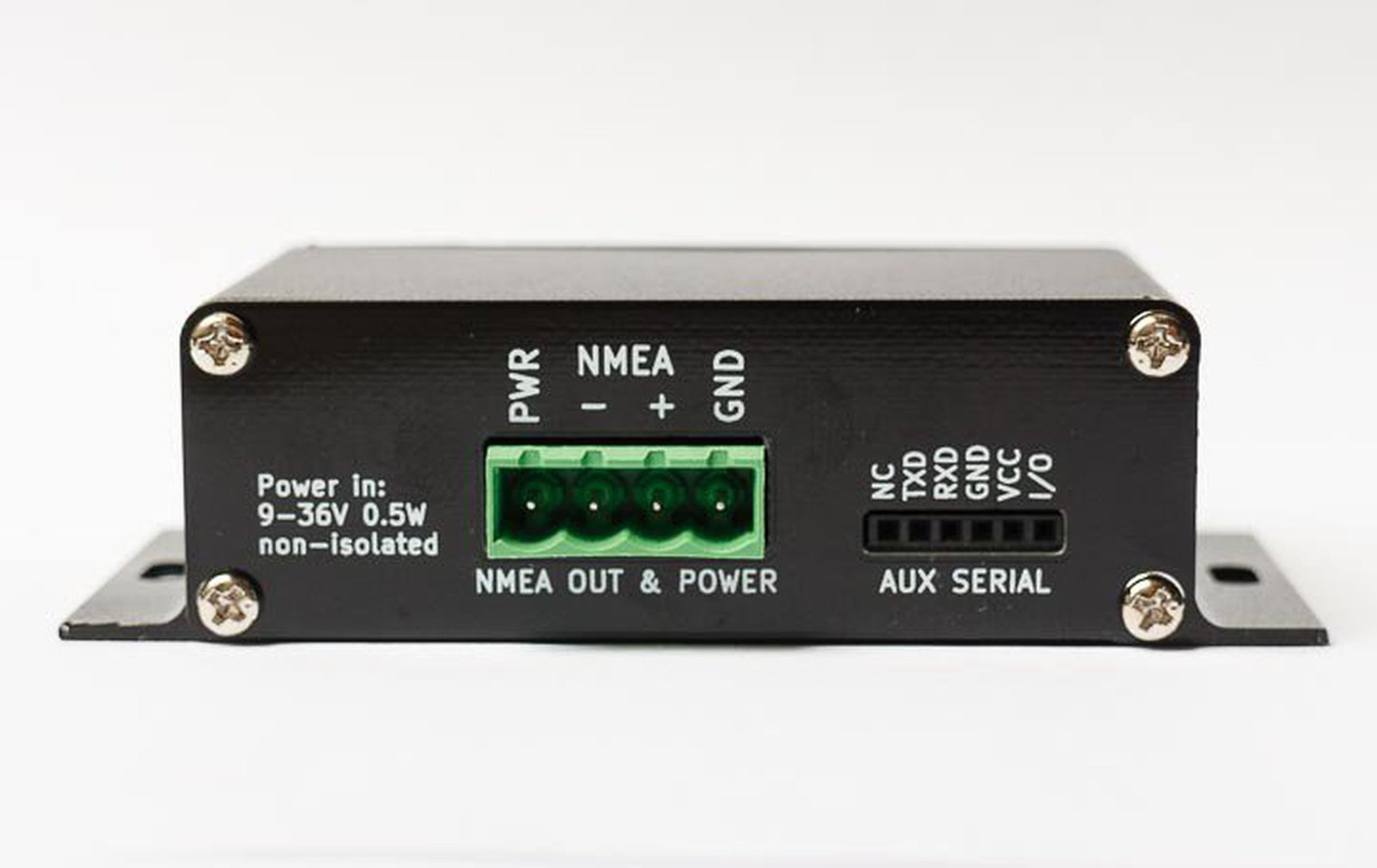

NMEA 0183 / RS-422 output
The dAISy 2+ AIS Receiver can directly talk to chart plotters and other marine electronics. In addition, the integrated DC/DC converter allows to power it from your boat's 12-36V power system, removing the need for a USB power source.
dAISy was successfully tested with chart plotters (Garmin GpsMap 750s, Standard Horizon CP180i, Samyung N700), NMEA routers (vyacht) and RS-422 routers (Transas 4 port RS-422 to Ethernet). I expect it to also work with other devices that support NMEA 0183 or RS-422 input.
dAISy works great with OpenCPN and OpenPlotter
OpenCPN, an open source chart plotter and navigation software, can be used with devices like dAISy to track ships on a map. Any software running on a PC, Mac or small Linux computer that accepts AIS data from a serial input will work with dAISy.
Several of our customers built chart plotters based on a Raspberry Pi. The OpenPlotter project is a great starting point as it includes all the required applications and easy to use configuration screens.
Disclaimer: WE DO NOT RECOMMEND to rely solely on dAISy for navigation and collision avoidance!
Reporting to MarineTraffic
dAISy is well suited to report nearby ship traffic to websites and services like MarineTraffic, AISHub or Pocket Mariner.
The easiest approach is to use dAISy with AIS Dispatcher which allows to feed the AIS data stream to multiple targets, including services like MarineTraffic and AISHub.
An alternative approach is to use Kplex. Kplex allows you to setup a NMEA server to distribute AIS to other devices on your network, like for example via WiFi to a navigation app running on an iPad. MUPLEX for Linux and NMEA Router for Windows are a similar tools.
Auxiliary Serial Output
For tinkerers, the serial data stream is available on a 0.1" header on the back of the unit. Advanced users can combine dAISy with a WiFi module to receive AIS on wireless devices, or connect a data logger like SparkFun OpenLog.
In fact, the pin-out of the auxiliary serial port is compatible with the HC-05/06 Bluetooth modules and DT-06 TTL to WiFi modules. Here are instructions for configuring the WiFi module.
If UART serial communication is all you need, also take a look at our dAISy HAT, dAISy Mini, and dAISy FeatherWing products.
And no, we won't void your warranty for taking a screw driver and soldering iron to dAISy :-)
How dAISy compares
With our open source work, we pioneered a new category of AIS receivers designed around the SiLabs EZRadioPro single chip radio IC. This architecture is instrumental for the very low price, small form factor and low power consumption. The trade-offs are longer acquisition time, lower sensitivity and less range than traditional AIS receivers.
Field tests with conventional dual-channel receivers (like SmartRadio SR162, advanSEA RX-100) showed that dAISy 2+ indeed has lower range and is slower to acquire targets. However dAISy 2+ clearly outperforms other low-cost receivers that we've tested (Quark-elec, MarineGadget).
Our observation is, that with a good antenna dAISy is well suited to monitor local ship traffic. If you need maximum performance and are willing to pay for it, go with a receiver from the established brands.
Warranty, shipping, etc.
Our AIS receivers are professionally assembled in the USA. We offer a 12 month warranty on the product (excluding physical or water damage). Please contact us if your AIS receiver prematurely fails or if you encounter any other technical issues.
We ship with US Postal Service First Class Mail, UPS and DHL Express. First Class Mail delivery is very reliable, however tracking is only available for a few countries. Please contact us if you have special shipping requirements.
Note: For international shipping, VAT and other import or handling fees may be applied by your local customs. These are the responsibility of the recipient. We will always declare the purchase price excl. shipping.
Fulfillment from within the EU
From past experience, we highly recommend to consider our EU resellers for customers in Germany, Portugal and Greece.
