This adapter is an upgrade for existing customers of the single-channel dAISy. If you don't have a dAISy yet, we recommend buying the dAISy 2+ which already comes with NMEA 0183 / RS-422 output built-in.

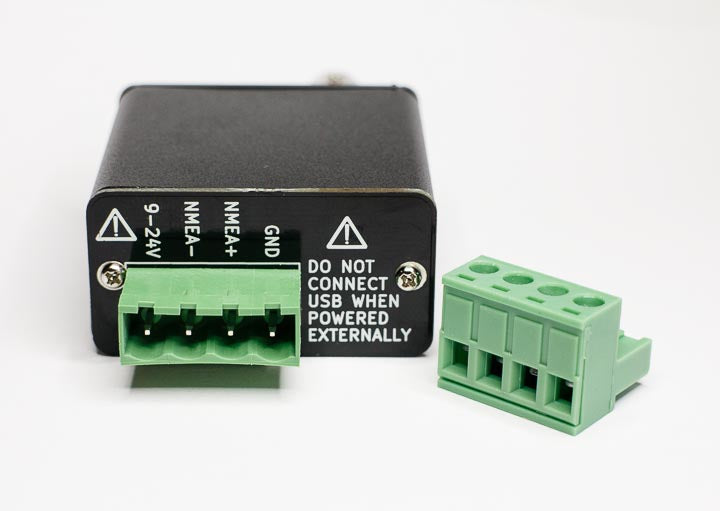

With this adapter, the dAISy AIS Receiver can directly talk to chart plotters and other marine electronics. In addition, the integrated DC/DC converter allows to power it from your boat's 12-24V power system, removing the need for a USB power source.
- NMEA 0183 / RS-422 output at 5V
- NMEA high speed (38400 baud)
- NMEA low speed (4800 baud) supported with dAISy firmware 4.07 or higher
- Powered from 9-24V or through USB
- Drawing approx. 25mA additional current
This adapter was successfully tested with chart plotters (Garmin GpsMap 750s, Standard Horizon CP180i, Samyung N700), NMEA routers (vyacht) and RS-422 routers (Transas 4 port RS-422 to Ethernet). We expect it to also work with other devices that support NMEA 0183 or RS-422 input.
Basic soldering skills required for assembly

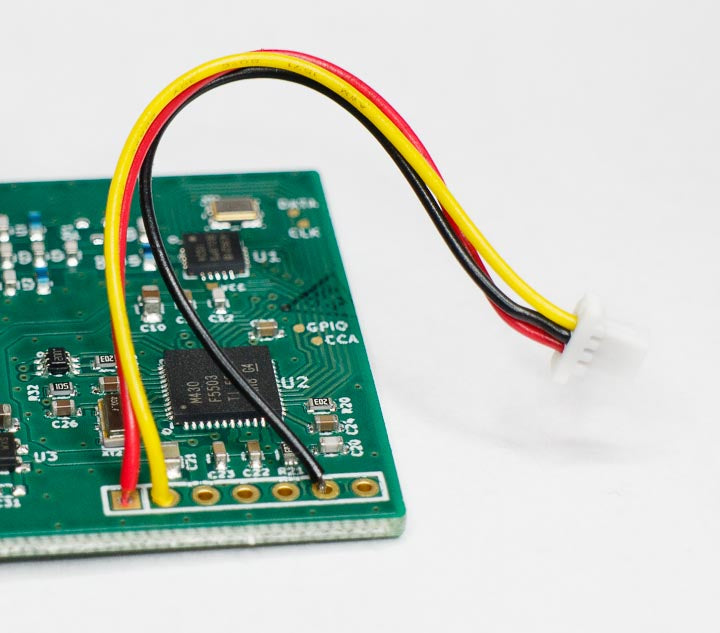

The adapter screws to the back of dAISy's enclosure. 3 wires need to be soldered to the main PCB for the electric connection:
- Black to GND
- Red to 5V
- Yellow to TX
Ordering fully assembled units
If you order this adapter together with a dAISy AIS Receiver, we assemble the receiver and adapter for you.
If you already own a dAISy but don't feel comfortable with putting a soldering iron to it, please send us a message by clicking the "Contact Us" link on the left.
Use as generic RS-422 adapter
On a technical level, this adapter translates one 3.3V-5V serial input to a 5V differential signal. This means, that it can also be used with your own DIY project in need of RS-422 output.

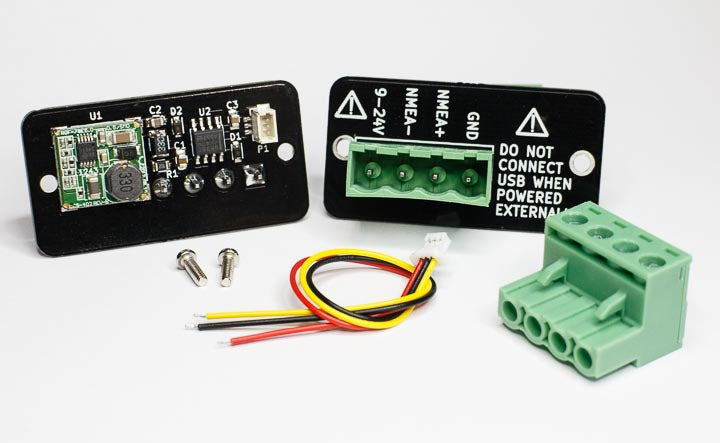

The differential output is driven by a Texas Instruments UA9638 transceiver. The yellow wire is the serial input of the transceiver.
5V power is provided through the red wire or from an external power supply. External power is regulated by a RECOM ROF-78E5.0-0.5 9-36V, 500mA DC/DC converter. When using external power, 4.7V will be present at the red wire, which can be used to power your project with up to 450mA.
